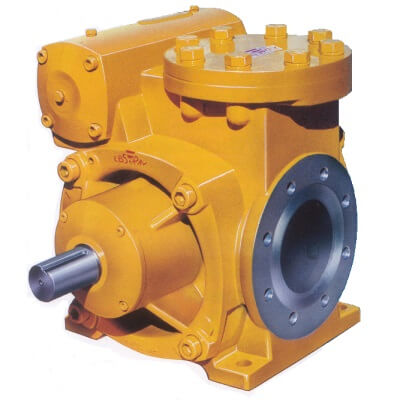

Series V Sliding Vane Pumps

Highly efficient self priming Positive Displacement Sliding Vane Pumps, generally for low to medium viscosity lubricating and non-lubricating liquids.  Designed and precision built tooptimise all the advantages of the Sliding Vane Principle.  Automatic compensation for vane wear assures the pump will maintain its superior priming characteristics and line stripping ability over a long service life.  Smooth output flow ensures quiet operation within theNPSH range.  The pumps can be direct-coupled to synchronous speed motors.
Fields of Application
Road tanker mounting and fixed installation for loading and unloading of Petroleum products such as: petrol, distillate, aviation fuels, lubricating oils, LPG, chemicals solvents and edible oils.
Constructional Features
  • Replaceable wearing components
  • Balanced mechanical seals, Shaft lip seals
  • Positive axial location of rotor
  • Multiporting configurations
  • Double-ended shaft (some models)
  • Bypass valve - integral adjustable
  • Lightweight or standard
  • Compact and robust
Materials of Construction
  • Casing - Cast Iron, Ductile Iron, Aluminum, Steel
  • Rotors - Cast Iron,ADI - model dependent
  • Vanes - Engineered plastic
  • Liner - Cast Iron,ADI - model dependent
  • Shaft - High Tensile Alloy Steel or Stainless Steel
  • Special materials to specification
Range of performance
Flows to 6,360 L/min
Pressures to 1,100 kPa
Viscosities to 10,000 cSt
Temperatures to 100°C

PRODUCT ID: V Series
