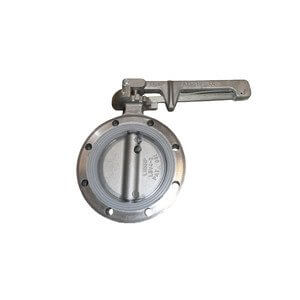

Liquip's range of 4" butterfly valves provide and control full flow through pipelines fitted with 100mm (4") TTMA flanges.
With a lightweight and durable design Liquip's butterfly valves are the butterfly valve of choice.
- 4 stage opening/closing valve.
- 100mm (4") product flow.
- Industry Standard 4" TTMA Flange Mounting.
- Bonded Viton B70 or GFLT seal for increased durability.
- Lightweight aluminium body.
- Can be fitted with an air actuator or locking tab as required.
Working pressure
1,500 kPa (210 PSI) in open position.
750 kPa (123.25 PSI) in closed position.
Operating temperature
LBV450VG: –40°C to 100°C.
LBV450VG: –10°C to 100°C.
Mounting
Mounts directly to Liquip 100mm TTMA standard flange with chamfered entry to ensure disc clearance in open position.
