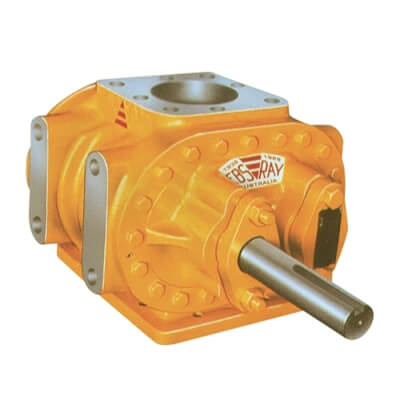

Series G Helical Gear Pumps

A robust design particularly suitable for pumping bitumen/asphalt in the toughest of environments ie bitumen transfer, road sprayers, tanker duties.
Constructional Features
  • Internal (submersible) or external tank mounting.
  • Reversible rotation.
  • Helical cut gears.
  • Extra heavy duty build.
  • Simplicity of design.
Materials of Construction
  • Casing - Cast Iron
  • Rotors - Cast Iron
  • Shaft - Extra High Tensile Alloy Steel
  • Special materials to specification
Range of performance
Flows to 21 L/s
Diff. Pressures to 2000 kPa
Viscosities to 500,000 cSt
Temperatures to 350°C

PRODUCT ID: G Series
