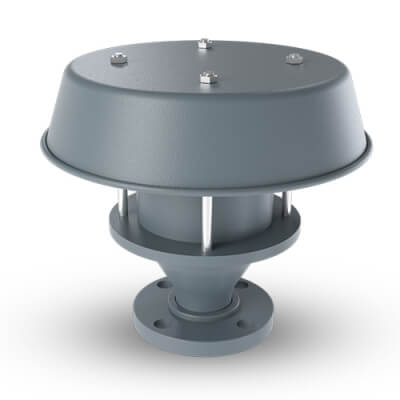

Provides the maximum airflow consistent with operating efficiency, fire protection and low cost maintenance. Mounts on the end of a tank vent pipe or process vent pipe, allowing vapors to escape into the atmosphere and for air to be drawn into the tank through the stainless steel crimped metal element. They have been certified for use with the following chemical vapor mixtures as defined in NEC Article 500.
- Accurate and consistent element windings.
- Low pressure drops, less susceptible to clogging.
- Weatherhood easily removed for maintenance.
- Removable element.
Series 27000 for Group D Vapors in Sizes 2" (DN50) through 16" (DN400), generally equivalent to IECGroup IIA
Series 29000 for Group D & C Vapors in sizes 2" (DN50)through 10" (DN150), generally equivalent to IEC Groups IIA and IIB
Series 31000 for Group D, C & B Vapors in sizes 2" (DN50) and 3" (DN80), generally equivalent to IEC Groups IIA,IIB and IIC
Flange Pattern: ANSI Standard, DIN Optional
Material/Construction:
* Carbon Steel * Stainless Steel * AlloyC276
