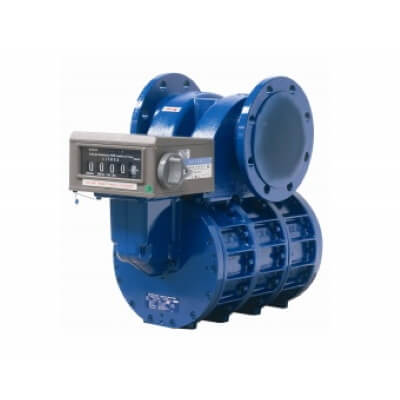

BARE MASTER METER WITH REGISTER

The SATAM Positive Displacement meter (PD meter) is a system with freely-moving blades used to measure white petroleum products such as fuels, bio-fuels and refined liquid hydrocarbons. Its simple design using only two pairs of blades and one moving rotor means Satam PD meter is exceptionally robust and also generates significant savings on maintenance costs as the meter boasts outstanding metering accuracy and stability.

Sectors of application:
  • Oil depots: for product reception and loading stations for trucks, railcars and ships
  • Hydrocarbon transportation: distribution of fuel oil or fuel by road tanker
  • Aircraft refueling: aircraft dispensers and fuelling tankers
  • Army: depot supplies and loading of trucks
  • Transport companies: refueling locomotives, trucks and public transport coaches
  • Marine applications: ships refuelling
  • Mining sites: refuelling of trucks or site machinery
Key Points:
  • Reduced pressure loss: 0,3 to 0.5 bar at maximum flow rate
  • Low maintenance costs: simple and robust design with interchangeable mechanical components
  • Reliable measurements: accuracy and stability of measurements guaranteed over a period of many years
  • Modular design: wide range of accessories for performing customized measurement applications
  • Robust construction: flowmeter manifold separated from measurement chamber to eliminate any possible influence of external mechanical stresses on measurement
Main technical data:
  • Volume accuracy : < 0.15% - Option < 0.1% - for measement range of 10 :1
  • Volume repeatability : = 0.02%

PRODUCT ID: ZC17-24
