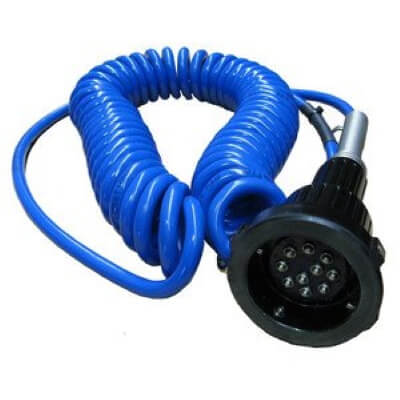

GANTRY PLUGS & CABLE

Liquip gantry plugs are an industry standard 3 or 4 pin bayonet plug and they connect terminal/gantry systems to a tanker.

Gantry plugs are designed for use with common industry overfill protection monitors and vehicles including the Liquip RM140 “Overfill Monitor”.

3 pin or 4 pin configurations available to suit both 3 and 4 J-slot truck plugs.
Caters for up to 8 compartments with 2-wire probes.
Robust petroleum-resistant housing which can withstand harsh environments.
Cable is ten-core self-coiling (8m reach) with petroleum-resistant outer sheath.
High-visibility cable for ease of visibility and safety.
Supplied with a M25 cable gland and junction box is supplied with an adaptor 3/4” NPT. This allows interchangeability for spare parts.

JB100 JUNCTION BOX

JB103 JUNCTION BOX
