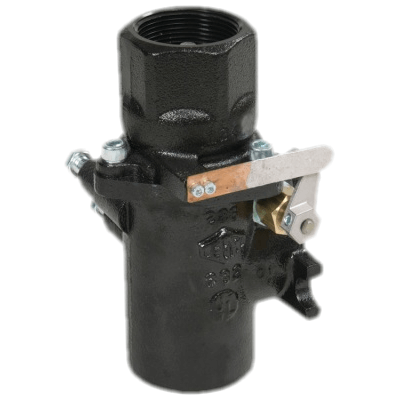

SHEAR VALVE

Emergency shear valves immediately stop product flow in the event of fire or collision at the dispenser. A patented adapter shears clean upon impact, causing the poppet to seal on the valve body preventing fuel spillage. When fire occurs, a fusible link releases the fulcrum arm, engaging the poppet. Standard 1-1/2" NPT openings allow minimal flow restriction and a pre-drilled test plug is included for line pressure testing. The valve can be boss or U-bolt mounted. Easy-to-replace adapters slide on and off valve base without lifting the dispenser. Adapters are available in male, female or union connections. Double poppet stops flow from the pump and dispenser piping.

Fusible link closes poppet in the event of a fire (165.0 ºF and 73.9 ºC).
Main poppet seals in valve body, preventing accidents when replacing adapters.
E-coated body corrosion protection.
Meets NFPA30A requirements.
AGB compatible (E-85, gasoline and Biodiesel.)
UL842A and UL842B approved for E-85 alcohol/gas blends and biodiesel.

PRODUCT ID: 66245022

Product Sheet
