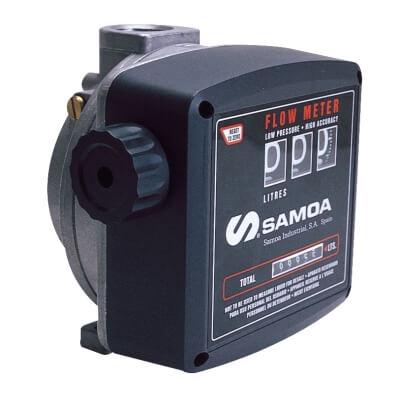

MECHANICAL DIESEL METER

Nutating-disk meter for diesel with mechanical register.  Reliable, easy to install and simple to calibrate.  Very low pressure drop; it can also be used for Gravity fed applications.
  • Resettable partial reading up to 999.9 litres and permanent 6 digit totalizer.
  • 1" FBSP Inlet/Outlet, both with flange for optional flange mounting.
  • Allows the Inlet/Outlet axis to be orientated in four different positions with respect to the register orientation.
  • Maximum working pressure 10 Bar.
  • 10 - 100LPM Flow Range.
  • ± 1 % Accuracy.
  • 3 digit Register


PRODUCT ID: 680300
