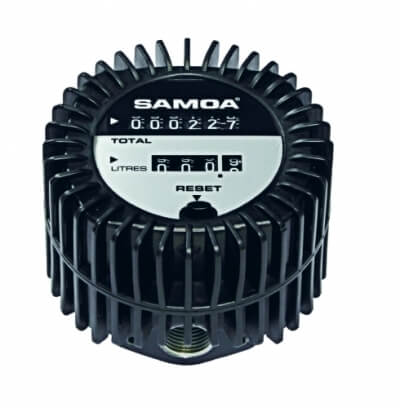

MECHANICAL OIL METER

Oval gear meter with mechanical odometer style register inlitres for use with lubricants up to SAE 140. Resettable partial reading up to 999.9 litres and non-resettable totalizer. Meters are factory calibrated for maximum accuracy and include protective rubber shroud.
  • Maximum working pressure: 70 bar (1,000 psi).
  • Oil flow range: 1 to 27lpm (0.26 to 7.1 USgpm). F
  • Fluid inlet and outlet threads: 1/2"BSP (F). Includes protective rubber shroud.
  • Accuracy: ±1%


PRODUCT ID: 366850
