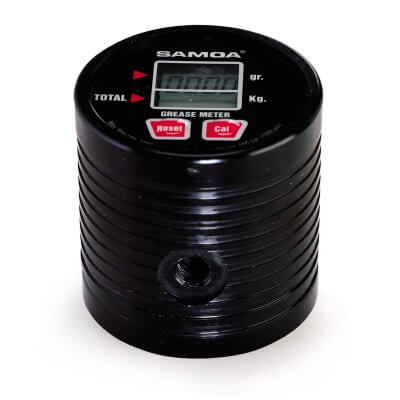

INLINE GREASE METER

High pressure oval gear meter with electronic digital LCD display. Batch display in grams (up to 9,999gr) and permanent totalizer in kilograms (up to 999,999 kg). Batch display reset button. Meters are factory calibrated and they can easily be re-calibrated in the field for increased accuracy. Works with two 1.5 V AAA alkaline batteries.
  • Maximum pressure: 500 bar (7,140 psi).
  • Maximum flow range: up to 1 kg/min (2.2 lb/min).
  • Accuracy: ± 3,0 %.
  • Inlet and outlet connections: 1/8"BSP (F).
  • Includes one 1/8"BSP (MM) connector.


PRODUCT ID: 411100
