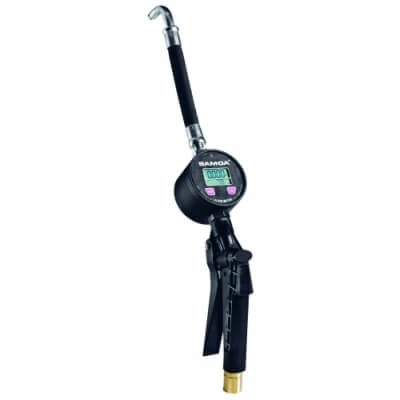

OVAL METERED GEAR NOZZLE
Oval gear hose end meter with electronic digital LCD display for measured delivery of fluids such as windshield washer, glycol solution and other water based fluids. Display is powered by two easily replaceable AAA 1.5 V alkaline batteries. The meter has two separate displays in litres, a resettable 4 digit batch display and a permanent totalizer. Factory calibrated and can easily be re-calibrated in the field for increased accuracy. It can measure in litres, quarts, pints and US gallons. The meter is coupled to fluid control gun (PN 186 300).
Maximum working pressure:
40 bar (570 psi).
Flow range:
5 to 15 l/min (1.3 to 4 USgpm).
Fluid inlet thread:
1/2"BSP (F).
PRODUCT ID:
365675
Resources
Associated Equipment
Spare Parts
Video
Product Sheet
