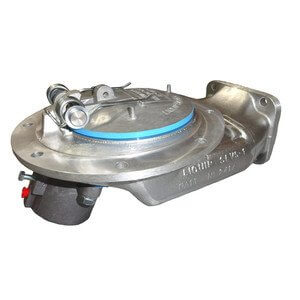

The SLV5-ARO pneumatic and sequential emergency valve incorporates the latest technical advancements to ensure high flow rates and the safe loading and discharge of road tankers.
The SLV-ARO has a specially designed poppet that provides a reduction in static electricity for fast and safe operation at high flow rates.
This valve is installed in the compartment floor and controls the flow of product from each compartment. It also incorporates a shear groove which is designed to break below the valve and retain the compartment contents in the event of accidental damage to the wet legs or API adaptors.
The 125mm diameter poppet has a concave design which operates as a deflector reducing splash, surge and static build up during loading and similarly during discharge. The unique design results in nil vortexing of the product meaning faster and safer loading and unloading.
- A unique hinged poppet design that acts as a splash deflector to eliminate vortexing of product surges and static build up.
- Minimal pressure drop across the system.
- Can be operated pneumatically or manually.
- Can be manually operated with a jack screw in the event of pressure loss.
- Air operator assembly is easily removable & replaceable.
- Specially bonded lip seal design for superior sealing and extended life.
- Fitted with Viton A seals as standard for superior product compatibility.
- Incorporates a shear groove that is designed to retain the compartment contents in the event of accidental damage.
- Easily removed for routine maintenance.
- Conforms with AS2809 requirements.
- SLV5-ARO supplied with a jacking screw to allow manual partial opening of the valve in the event of air pressure loss.
Pressure Rating
Nominal Ø100mm flow area except poppet is Ø125 bore for minimum pressure drop. Needs a minimum of 350 kPa of air pressure.
Air Consumption
Consumption 1.0L free air per stroke.
Mounting
Bolted to sump or tank flange at the bottom of tank 8 holes Ø9.5 on a 210 PCD.
