OCIO OIL TANK LEVEL MONITORING

Digital TankGauge c/w 240V Controller & Sensing Tube to suit Oil, >30cSt
Continuous tank level monitoring. OCIO detects the static pressure generated by the fluid height by means of a tube inserted into the tank and displays the fluid level or volume.

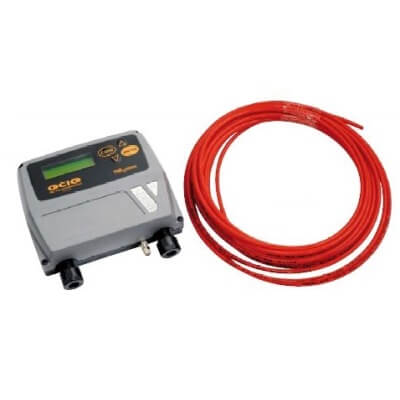

The system consists of:
  • A tube for detecting static pressure: The tube end is inserted from the top of the tank and lowered down into the liquid until it touches the bottom.
  • A control unit for displaying the level and managing the system. The unit is equipped with an intuitive, complete software and permits the connection of two alarm or lock devices.
The software is used to:
  • Set tank type and dimensions
  • Define alarm levels
  • Define indication level
  • Define measurement unit
  • Calibrate the instrument Depending on the set alarm levels, the control unit activates or deactivates the contact by acting as a remote switch for starting the alarms or cutting power to the connected equipment.
  • Maximum measurable height: 4 m.
  • Probe tube length: 10 m.


PRODUCT ID: OCIO-OIL
