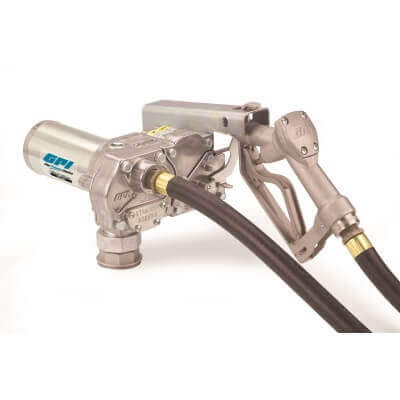

ELECTRIC GEAR PUMP

The Fuel Transfer Pump is economical with proven dependability and efficiency.  The pump has UL listed motors, are CSA certified, and are also overload protected to promote long life.
APPLICATIONS
  • Fluids: Low viscosity petroleum fuels such as gasoline, kerosene, and diesel fuel.
  • Operating Environment: Outdoor, year-round with an operating temperature range of -20deg to +125degF (-29deg to +52degC). Designed for mounting on portable, vented petroleum storage tanks.
  • Pump Housing: Lightweight,corrision-resistant, cast aluminium body. Convenient spin collar for easy installation
PERFORMANCE
  • Pump Rate: Up to 13.5GPM (51 LPM).
  • Duty Cycle: 30 minutes on, 30 minutes off.
  • Dry Prime: 5.5 ft. (1.7m) minimum.
  • Total Lift: 25 ft. (7.6m)
  • Current Draw: 18 amp
ELECTRICAL
  • Input: 12 volt DC
  • Cord: 15 ft. (4.6m) of 12 gauge
  • Fuse: 25 amps AGC
  • Motor: 1900 RPM. UL Listed. CSA Certified.
MECHANICAL CONNECTIONS
  • Bung: 2 inch NPT
  • Inlet: 1 inch BSP
  • Outlet: 3/4 inch BSP
ACCESSORIES
  • Hose: 3/4 inch x 12 ft. (3.7m) Buna-N statically grounded.
  • Nozzle: 3/4 inch manual unleaded.
  • Security: Nozzle can be padlocked.
  • Ship Weight: 23 lbs. (10.4kg)

PRODUCT ID: M-150S
