HI VOLUME PISTON PUMP

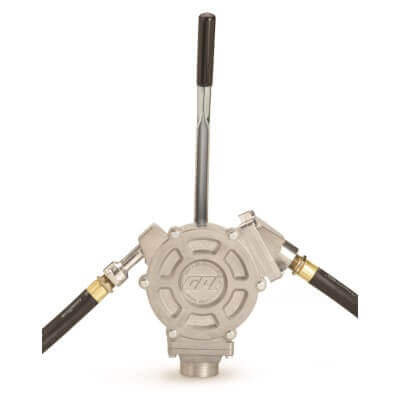

The HP-100 Dual-Flo Petroleum Hand Pump is compatible with a wide variety of petroleum products and fits any container with a 2-inch NPT bung.
  • Construction: Lightweight, die-cast aluminium housing. Stainless steel piston shaft and liner. Buna-N seals. Built-in anti-siphon valve to prevent leaks at the nozzle.
  • Pumping Capacity: Up to 30GPM (114LPM)
  • Pumping Settings: 2 litre setting for high volume, higher resistance. 1 litre setting for low volume, low resistance.
  • Inlet: 1 inch FNPT
  • Outlet: 3/4 inch FNSP
  • Dry Prime: 5 ft. (1.5m) minimum.
  • Hose: 3/4” x 8 ft. (2.4m) Buna-N
  • Nozzle: Thermoplastic unleaded nozzle. Built- in nozzle holder.
  • Suction Pipe: Plastic, adjustable 22 to 40 inches (56 to 102cm).
  • Security: Handle can be padlocked.


PRODUCT ID: HP-100
