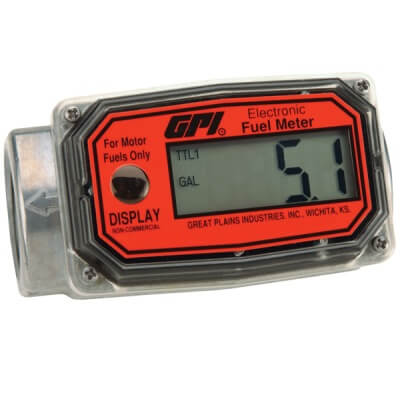

ELECTRONIC DIGITAL TURBINE METER

Designed for outdoor, year-round use on fuel transfer pumps in the 10 to 100LPM flow range. Calibrated at the factory for use with diesel fuel or kerosene.
  • Unit of Measure: Litre
  • Flow Range: 10 to 100LPM
  • Accuracy: * ±5%
  • Design Type Turbine Housing: Aluminium
  • Maximum Working Pressure: 20.7 bar
  • Threads: (Female) 1" BSP (300 PSI)
  • Maximum Batch Total: 9,999
  • Maximum Cumulative Total: 9,999
  • Operating Temperature: -10° to + 54°C
  • Storage Temperature: -40° to +70°C
  • Weight: 340 grams


PRODUCT ID: 1A12LM
