The Safety Break Away couplings are designed to eliminate spillage and damage associated with drive/pull away incidents. It uses a double valve arrangement that ensures closure of both halves before the main seal release to atmosphere. The coupling halves seal automatically as soon as a movement greater than 15mm is detected between the halves. This important feature removes the possibility of incomplete closure in partial break away or excessive strain conditions.

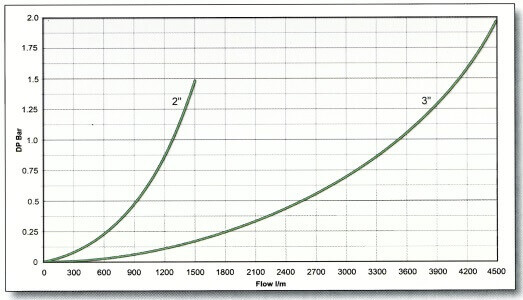

- Exceptionally high flow rate/low pressure drop.
- Ultra compact design.
- Encapsulated shear bolts.
- Operates independently of shut off safety systems and does not require an external power source.
- Will release at any angle of pull.
- Marine midhose versions available.
- Easy to re-set on site with one person.

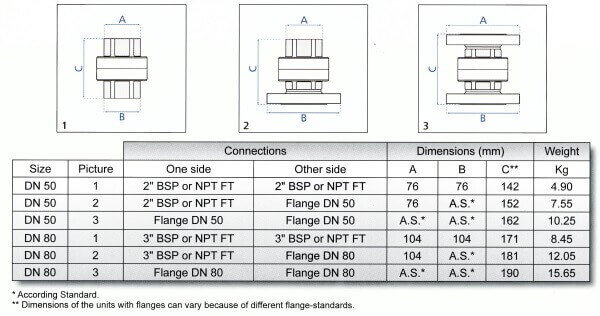

Sizes: 2" to 3".
Materials: Stainless Steel.
Seals: Viton as standard, EPDM and FFKM on request.
Working Pressure: PN25 bar.
Test Pressure: 37.5 bar.
Break envelope: 90 3D in all directions from centre reference plane.
End connections: BSP and NPT threads, different kind of flanges.
