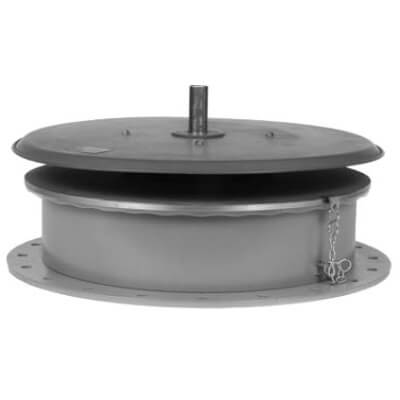

Series 52500 Emergency Pressure/Vacuum Manhole Cover Vent
Provides emergency pressure relief and normal vacuum relief when installed on the manhole flange of a storage tank. The pressure cover lifts only far enough to flow at its rated capacity should high tank pressure be encountered. It then reseals automatically when the tank pressure is reduced.
Vents directly to atmosphere.
Pressure setting achieved by weight loading.
Vacuum setting achieved by spring loading.
Reseats automatically.
Patented, FEP film "Air-Cushioned Seating".
Easy access manway facilitates inspection and repairs.
Sizes:
16" (DN400) through 24" (DN600)
Flange Pattern:
ANSI or API Standard, DIN Optional
Material/Construction:
* Carbon Steel * Aluminium * Stainless Steel * AlloyC276 * Special Coating
PRODUCT ID:
52500 Series
