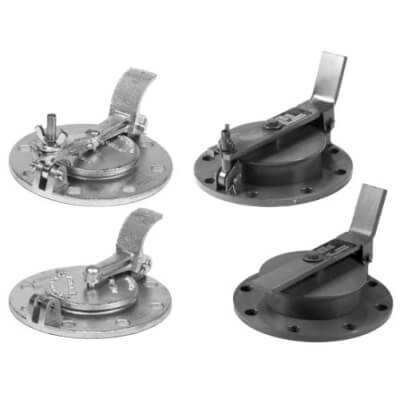

Provide ready access to contents of storage tanks forgauging or sampling. The lock-down feature on Series 4970D/5960D is suitable for tanks with normal operating pressure under 3 PSIG.
- Provide tank access for temperature readings
- Free-lifting or lockdown models available
- Thermometer hook,gauge marker and lock hole are provided
- Hinged cover can be opened a full 75° to 80°
Sizes: 2" (DN50) through 10" (DN250)
FM Approved: 4", 6" & 8", UL Listed:Series4960D/4980D 4", 6" & 8"
Flange Pattern: ANSI Standard, DIN Optional
Material/Construction:
* Aluminium * Carbon Steel * Stainless Steel
