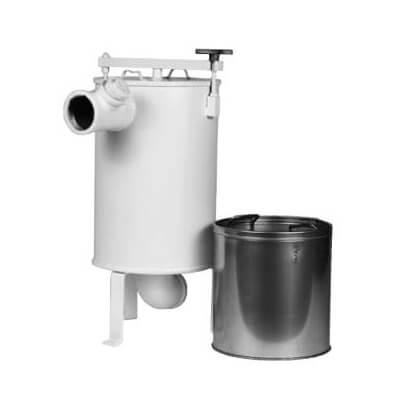

Series 782 Air Dryer

A simple and effective method to remove unwanted moisture from air entering storage tanks under inbreathing conditions.  Incoming air must pass through a 13.6kg charge of silica gel desiccant.  Unit includes and integral humidity indicator.  Suitable when more expensive and sophisticated central air drying or inert gas systems are not required.
  • For the protection of moisture sensitive liquids.
  • Low pressure drops.
  • Flange or threaded connections.
  • Integral humidity indicator.
  • Easy inspection and maintenance.
  • Large, removable desiccant receptacle.
  • No tools required for maintenance.
  • Large diameter desiccant chamber.

Sizes: 2" (DN50) through 3" (DN75)
Flange Pattern: ANSI Standard, DIN Optional
Material/Construction:
* Carbon Steel      * Stainless Steel

PRODUCT ID: 782 Series
