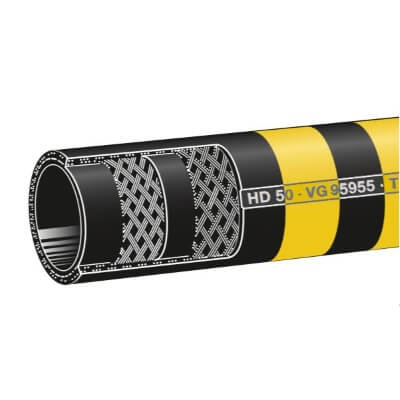

Series BDV Aviation Hose
'Yellow Band' high pressure fuelling hose without helix for reel operation. Ideal for all petroleum based products.
Corresponds to EN 1761. Can becalibrated according to European regulations. Approved acc.
to German military standard VG 95 955 Typ D. Corresponds to EN 12115.
Temperature range: -30° up to +90°C (temporarily up to 110°C).
Electrical conductivity: < 106 Ohm.
Lining : Nitrile rubber (NBR) black, no fuel-solubility
Reinforcements : Two low tensile textile braids for extreme low volume increase under pressure.
Cover : Chloroprene (CR), black, conductive
BDV100C 100mm Bore Elaflex Av. Hose
BDV10C 10mm Aviation Hose
BDV13C 13mm Bore Elaflex Av. Hose
BDV19C 19mm Bore Elaflex Av. Hose
BDV25C 25mm Bore Elaflex Av. Hose
BDV32C 32mm Bore Elaflex Av. Hose
BDV38C 38mm Bore Elaflex Av. Hose
BDV50C 50mm Bore Elaflex Av. Hose
BDV63C 63mm Bore Elaflex Av. Hose
BDV75C 75mm Bore Elaflex Av. Hose
