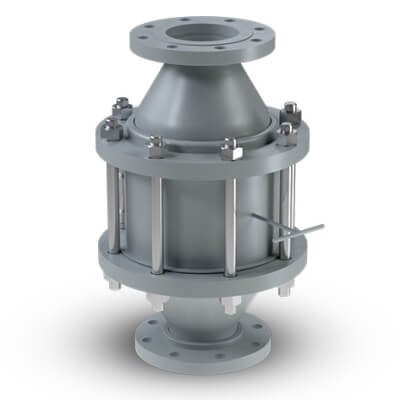

Series 30000 Vent Line/I-Line Crimped Metal Flame Arrester

Designed for installation in open vent pipes or bleed lines from storage or processing tanks. Prevents propagation of flame fronts from the external opening into the tank. Crimped metal element provides a straight through flow path, less pressure drop and less susceptibility to clogging. Suitable for horizontal or vertical mounting. Suitable for group D vapors, such as gasoline and methane, as referenced in the National Electric Code (NEC Article 500), generally equivalent to International Electrotechnical Commission (IEC) group IIA. Consult the factory for maximum allowable distance from the end of an open pipe.

Straight-thru flow pattern minimizes element fouling
Protects against flame propagation in vent lines
Low pressure drop, less susceptible to clogging
Easy maintenance and inspection

Sizes: 6" (DN150) through 12" (DN300)

Flange Pattern: ANSI Standard, DIN Optional

Material/Construction:

* Carbon Steel * Aluminium * Stainless Steel * AlloyC276

PRODUCT ID: 30000 Series

Product Sheet
