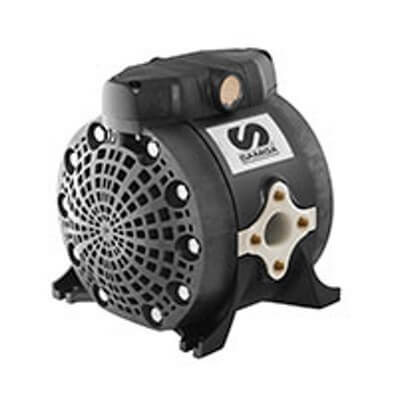

Series DF100P Air Operated Diaphragm Pump

Plastic pumps are adequate for indoor use and they can handle a wide range of fluids used for vehicle service.  Pump air valve module and lateral pump covers are manufactured in polypropylene or conductive polypropylene depending on models.

Typical applications are transferring and dispensing of windsheild wash and antifreeze solutions, pure windshield wash and AdBlue/DEF.  They can be used as stand-alone pumps for transfer applications or as systems pumps in distribution systems that include hose reels.  ATEX approved pumps are available in potential explosive environments and with flammable fluids like pure ethanol.

  • Pressure Ratio: 1:1
  • Max. Free delivery: 100 LPM
  • Delivery per stroke approx: 0.25 litres
  • Delivery per cycle (2 x strokes): 0.50 litres
  • Air Pressure Operating Range: 1.5 to 7 bar (22 to 102 PSI)
  • Solids in suspension max size: 4mm
  • Max. Dry Suction lift: 4.5m
  • Max. Wet Suction Lift: 7m
  • Fluid inlet Connection: 1" FBSP or FNPT
  • Fluid Outlet Connection: 1" FBSP or FNPT
  • Air Inlet Connection: 3/8" NPSM (F)
