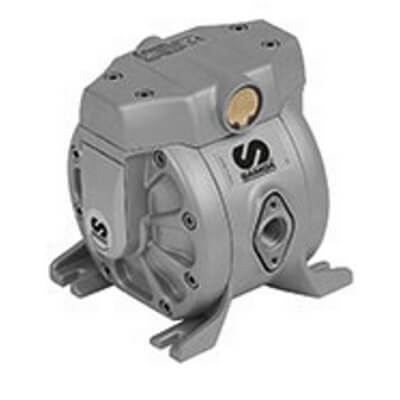

Series DF100 Air Operated Diaphram Pump

Metal pumps are adequate for indoor and outdoor use and they can handle a wide range of fluids used for vehicle service.  Pump air valve module and lateral pump covers are manufactured in aluminium.

Typical applications are transferring and dispensing of windshield wash, antifreeze solutions and lubricants.  They can be used as stand-alone pumps for transfer applications or as systems pumps in distribution systems that include hose reels.

  • Pressure Ratio: 1:1
  • Max. Free delivery: 100 LPM
  • Delivery per stroke approx: 0.25 litres
  • Delivery per cycle (2 x strokes): 0.5 litres
  • Air Pressure Operating Range: 1.5 to 7 bar (22 to 102 PSI)
  • Solids in suspension max size: 4mm
  • Max. Dry Suction lift: 4.5m
  • Max. Wet Suction Lift: 7m
  • Fluid inlet Connection: 1" NPSM (F)
  • Fluid Outlet Connection: 1" NPSM (F)
  • Air Inlet Connection: 3/8" NPSM (F)
