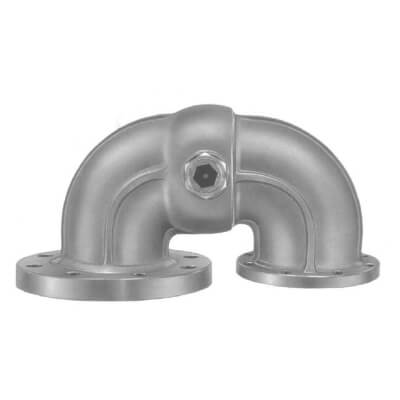

Series 878 180 deg Swivels
This is an aluminium swivel, generally used to assemble loading arms, floating suctions, drainage for floating roof and skimmers. They have a double ball race and different kind of seals depending on the liquid they will be used with. They can also be supplied in different configurations.
Design Pressure: 3 bar
Test Pressure: 5 bar
Design Temperature: -25°C/+65°C
Seals: Viton
878-12 12" Aluminium Type 40 180 deg swivel, 12" ANSI 150lb / 12" PN10 flange connection
878-14 Silea 14" Aluminium Type 40 180 deg swivel, 14" ANSI 150lb / 14" PN10 flange connection
878-16 Silea 16" model 878 Type 40 180 deg aluminium swivel, 16" PN10 & 16" ANS! 125# flat face flanges
878-6 6" 180 deg Type 40 Alum Swivel. 6" ANSI 150# x 6" TTMA flange connection, Plugged grease nipples for avaition.
878-8 8" Alum 180deg Style 40 Alum Swivel 8" ANSI 150# x 8" PN10 flanges. Plugged grease nipples for aviation.
Resources
Associated Equipment
Spare Parts
Video
Dimensions 878-10
Dimensions 878-12
Dimensions 878-14
Dimensions 878-16
Dimensions 878-6
Dimensions 878-8
Specifications
