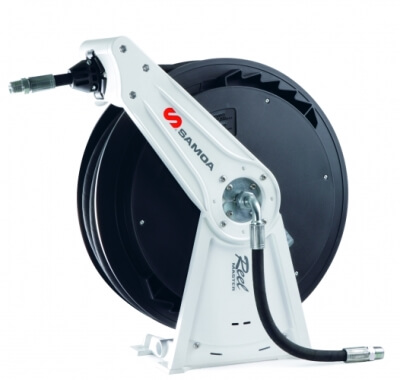

Series RM-12S Single Arm Hose Reels

Aluminium and composite material single arm hose reel for air, water, oil, antifreeze, windshield wash fluid, high pressure hot and cold water and grease with hose capacity up to 15 m x ½" hose.

Aluminium base and guide arm provides this reel with the rigidity to withstand even the most demanding applications, whilst offering a reduced weight for easy off installation (hose reel weight with 15 m x ½" hose is only 14.9 kg).
Epoxy powder coated aluminium base and arm, composite material spool and stainless steel fasteners provide superb corrosion resistance for working in damp environments.
Nickel protected shaft and swivel for wear and corrosion resistance and wide fluid compatibility.
Spool mounted on two permanently lubricated ball bearings for an easy pull out of the hose and better spring performance.
Large effective radial latching area for easier operation.
Round 6 roller hose outlet increases hose life, prevents hose pinching and reduces friction.
