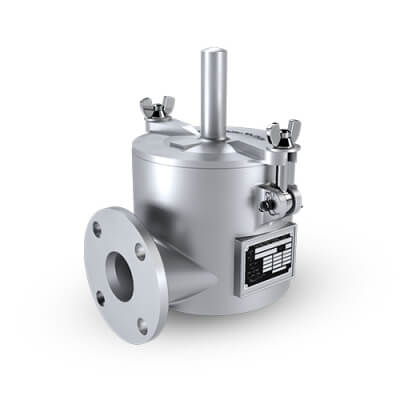

Series 16240 Side-Mount Vacuum Relief Vent

For use where only vacuum must be relieved in a vapor system.  A pallet in the housing opens and closes, allowing only the air intake necessary to avoid tank damage under normal operating conditions.
  • Settings achieved by weight loading.
  • Reduces costly evaporation losses.
  • Leakage rate of less than 1SCFH or air at 90% of set point.
  • Low-leak pallet design.

Sizes: 2" (DN50) through 12" (DN300)
Flange Pattern: ANSI Standard, DIN Optional
Material/Construction:
* Ductile Iron      * Aluminium      * Stainless Steel      * AlloyC276      * PVC
* FRP      * Special Coating      * Spring-Loaded      * Steam-Jacketed

PRODUCT ID: 16240 Series
