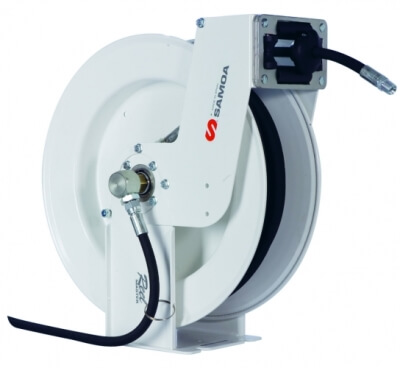

Samoa Series RM-34 Heavy Duty Hose Reels

Heavy Duty reinforced double pedestal reel with all metal construction.  It can be used with air, water, antifreeze, AdBlue® (DEF), lubricants, diesel and high pressure grease.  Hose capacity 15 m or ¾" hose or 20 m of  ½" hose.
  • Heavy duty full metal double pedestal reel, manufactured using 4 mm steel gauge. The base shaft assembly and outlet mouth form a very rigid and stable structure to stand the most demanding applications.
  • Full port nickel protected steel shaft and shaft for wear and corrosion resistance and wide fluid compatibility.  Reel for AdBlue® (DEF), has stainless steel shaft and acetal swivel with KFM seals.
  • Spool mounted on two permanent lubricated sealed ball bearings to reduce torque load on power spring for smooth operation and durability.
  • Large, effective radial latching area for easier operation.
  • Special fatigue resistance steel spring for years of durable performance
  • Positionable outlet mouth in seven positions for optimum operation in any mounting position: wall, ceiling, floor or tank.
  • Epoxy powder coated for increased wear resistance.
